WILL/STANDiT - Video sound bar mount for POLYCOM S

ERARD PRO video bar brackets for WILL and STANDiT — they mount on the column under the screen and at any height, so the height of the video bar is tuned on site and is not tied to the height of the screen. The references are split by the video bar, not by the stand. The compatible stands are STANDiT 600, STANDiT PRO and WILL, the 039102 rail for Logitech Rally Plus fits only WILL and STANDiT PRO anchored to the wall.

Reference 044669 is not in the current ERARD PRO catalogue and we will confirm its availability and any replacement reference with the order. On references 044664 and 044668 the list of compatible devices keeps growing, so compare it against the specific video bar before quoting.

Key features

• Mounted on the column under the screen and at any height, the video bar height is not tied to the screen height

• Nothing is drilled into or touched on the screen, the column of the stand carries the bracket

• Steel construction with epoxy paint, black finish

• Installation by one person

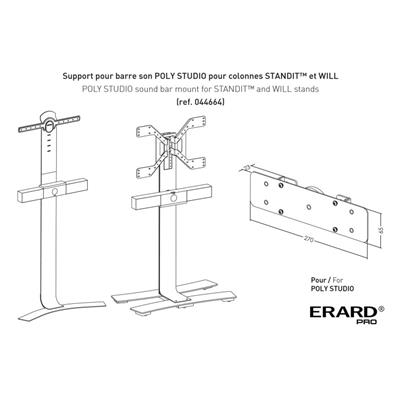

• 044664 for the POLY Studio video bar, dimensions 310 × 215 × 50 mm

• 044668 for POLY X30, dimensions 280 × 220 × 80 mm

• 044668 also covers POLY R30, POLY Studio E70 and POLY Studio V32

• 044668 further covers AVer VB130, Bose VB-S, Jabra Panacast Camera 20, Logitech Meetup 2, Yamaha CS-500, Yealink A10 and Yealink UVC34

• 044671 for Logitech Rally Bar, Rally Bar Mini and Rally Bar Huddle, dimensions 270 × 80 × 80 mm

• 044672 for larger video bars, among them Barco ClickShare Bar Core and Bar Pro, Neat Bar Generation 2 and Neat Bar Pro, Yealink A20, A30 and UVC40

• 039102 for Logitech Rally Plus, 1000 × 200 × 100 mm, 2 speakers and 1 camera, room for 2 mic pods at the back

Strengths and limits

Which installation

The “Suitable” field follows from the technical parameters of the items, the “Verify” and “Consider another model” fields from the practice of the atlantis team.

Compatibility and dimensions

The dimensions are given as width × depth × height. Reference 044669 is not in the current ERARD PRO catalogue, so its parameters and availability we will confirm with the order. The lists of compatible devices on 044664 and 044668 keep growing and that is not visible in our price list.

In the box

Order with it

Where the family sits

What to verify before ordering and installing

1. Video bar model: the specific device against the list on the given reference, the list keeps growing

2. Stand size: STANDiT 600, STANDiT PRO or WILL, on STANDiT 400 they are not confirmed, 039102 only WILL and STANDiT PRO anchored to the wall

3. Availability on 044669: the reference is not in the current catalogue, we confirm it with the order

4. Stand range: LUX-UP has its own brackets 622005, 622006 and 622007, KANA and KANAGO have brackets 139029, 139030, 139035 and 139037

5. Video bar height: it mounts at any height of the column, the position is chosen by the room geometry

6. Video bar cabling: routing along the column and cable length to the screen or to the computer

7. Colour contrast: the bracket is black, the WILL and STANDiT columns white, it belongs in the quote

8. Contents of the box: the extent of the supplied fixing hardware we will confirm with the order

The atlantis team helps with every point. From comparing the specific video bar against the compatibility list through the choice of reference and stand size to installation, commissioning and handover of the documentation.

Installation design and services

• The weakest link sets the load rating of the assembly: in a stand plus screen mount plus shelf assembly, the lowest of the stated load ratings always applies. Check the screen weight in its own datasheet, not from the diagonal.

• Check VESA before ordering: the stated range is the maximum pattern, not a guarantee that the screen fits. On large formats and on screens with curved or irregular backs, verify both the pattern and the thickness in advance.

• The wall type decides the fixing hardware: plasterboard, masonry and concrete each need different anchors. On part of the range the wall screw set is not in the box and the fixing hardware is chosen on site to suit the wall.

• Cabling and service access belong in the design, not on the installation day: cable routing inside the column, the wall penetration and access to the back of the screen have to be in the room layout before anyone drills.

atlantis services for partners

atlantis is a direct importer and distributor, and we supply through a network of specialist partners. The services below are therefore offered to the partner, not to the end customer. The partner sets the scope. On one project we are only the source of the parts and a consultation, on another we design the whole run and oversee the work, on a third we take on the installation in full.

• Choosing the kit by camera and distance: we pick the kit from the camera or codec the customer already has, how far it sits from the equipment and which interface is used, that is HDMI, USB or fibre. We also say what to do about a device that is not on the compatibility list.

• Route design and building readiness: we go through the cable run with the partner, the category and length of the cabling, the number and position of the boxes, the wall penetration and the space in the rack. On in-wall mounts the opening size and cavity depth are what matters, and we settle those before the order, not on site.

• Completing the order: we match the kit with the right cables, power supply and mount, because that is exactly where jobs are left unfinished. We check that the pieces fit each other by connector and by length, and that nothing the partner needs on day one is missing from the delivery.

• Installation and commissioning: we handle the professional installation in full, or support the partner's own team where needed. Once it is wired we test the link at full distance, that is picture, camera control and power, before the ceiling is closed.

• Integration with the customer's environment: we advise on connecting to the codec, to the control system and to third-party software and hardware, and on how the kit behaves when the camera is swapped for a different model.

• Service, spare parts and warranty: our certified team in Czech, available to the partner throughout the equipment's life. We keep track of the replacement modules and parts by range and handle a warranty claim with the manufacturer on the partner's behalf.

Warranty

The ERARD PRO range is passive mechanics, so the warranty covers the structure, the welds, the moving parts and the finish. The warranty term is not the same across the brand and for a given item it is what is stated below.
