Poly Studio V72 — a dual-camera USB video bar for large rooms where the meeting is run by the connected laptop and the customer does not want a room system.

Large room, microphone pickup up to 7.62 m

Two 20 MP cameras · 140° and 78° diagonal field of view

4 microphones, two of them second-order directional

Single USB-C connection, no native apps

Power adapter and wall mount kit included

Poly Studio V72 order code in our portfolio
Order code	Contents	Note
AV1E3AA	video bar, wall mount kit, AC adapter and power cable, USB-C cable, HDMI cable and 2 m Ethernet cable (this product)	white finish, power supply included

Key features

USB video bar for large rooms, two cameras, microphones and speakers in one body
Two 20 MP cameras with 140° and 78° diagonal fields of view, 7.3× digital zoom
Poly DirectorAI smart camera, people framing, group framing and speaker tracking
Four microphones, two digital MEMS and two second-order directional, pickup up to 7.62 m
Speaker system with mid-bass drivers and a tweeter
Integrated lens cover, wall mount kit and power adapter included

Overview

A large room without a room system

Poly Studio V72 is a USB video bar for large meeting rooms, training rooms and halls. It connects to a laptop with a single USB-C cable and the meeting runs in whatever application the user has on their computer. The customer buys no licences, manages no room account and is not tied to a single communication platform.

Two cameras for a long room

The optics are the key difference from the smaller models. Studio V72 has two 20 megapixel cameras, one with a wide 140° diagonal field of view for the overall shot and one with a narrower 78° diagonal field of view for close-ups of more distant participants. The Poly DirectorAI smart camera switches between them, frames individuals and the whole group and tracks the active speaker. The microphones pick up voices up to 7.62 metres away.

This is not a room system

Studio V72 has no native Teams, Zoom or Google Meet application and does not sign in to a room account. It is always the camera, microphones and speakers of the connected computer. The behaviour of the connectors follows from that, see Connectivity and power. If the customer wants a room system for a large meeting room, that is the Poly Studio X72.

Audio for a large space

The speaker system combines mid-bass drivers with 83 dB sensitivity and a tweeter with 89 dB sensitivity. The microphone array pairs two digital MEMS microphones with two second-order directional microphones with -26 dB sensitivity.

Strengths and limits

Strengths

Two cameras, wide and narrow, cover a long room without an external camera
Platform independent, works with any application on the user's laptop
No licences and no room account to manage
Pickup up to 7.62 m and a speaker system sized for a large space
Wall mount kit, power adapter and cables are included

Limits and what to tell the customer

This is not a room system. The meeting is always run by the connected computer, the device has no native apps and no room account.
The connectors do not behave like the Studio X72. Per the HP specification the HDMI input and the line in and line out are not supported, the HDMI outputs are for provisioning support only and the USB-A ports are disabled by default.
The device is 840 mm long and weighs 3.3 kg, mounting has to be resolved at design stage.
The device ships in white, the Studio X range is black. The standard manufacturer warranty is one year.

⚑ atlantis note

V or X

Studio V72 has no native apps and is always the audio and camera of a laptop. Studio X72 is a room system with native Teams, Zoom and Google Meet and its own room account. In large meeting rooms the room system requirement is more common, so confirm with the customer which one they actually want before ordering.

HDMI, line in and USB-A

The presence of connectors does not mean they work as they would on a room system. Per the HP specification the HDMI input is not supported, line in and line out are not supported, the HDMI outputs are for provisioning support only and the USB-A ports are disabled by default and can be enabled in the Poly Lens app. Do not plan on integration with room audio equipment or on driving the display through the video bar.

USB cable to the user

In a large room the laptop is usually far from the video bar. The length and routing of the USB cable has to be resolved at design stage, we are happy to recommend a suitable extension.

Colour and mounting

Poly Studio V72 ships in white. A wall mount kit is included, for any other placement we will recommend a solution for the specific installation.

Room fit

Recommended deployment parameters
Manufacturer positioning	large rooms
Microphone pickup range	7.62 m
Mode of operation	always through the connected computer, no room account
Typical deployment	large meeting room, training room, hall, boardroom without a room system

Good fit

A large room where users run meetings from their own laptops, different applications depending on the other party, a requirement for deployment without licences and without managing a room account.

Check the design

Room depth against the 7.62 m pickup range, USB cable routing to the user position, wall load capacity and mounting method, acoustics of a large space, backlight. We are happy to assess it.

Consider another model

Studio V52 for a medium meeting room, Studio V12 for a small room. If the customer wants a room system with its own account and native apps, that is the Studio X72.

How it is used

The only mode of operation

Cabled to a laptop

The device appears as a USB camera, microphone and speaker. The meeting runs in whatever application the user has on their computer, with no drivers to install.

USB-C

Manufacturer certifications

Certified platforms

Certified for Microsoft Teams and Zoom. Over USB it also works with other communication applications.

Microsoft Teams

Zoom

What Studio V72 does not have

No native application

It has no native Teams, Zoom or Google Meet and does not sign in to a room account. That is what the Studio X72 does.

not a room system

Drive the in-room display from the laptop, not through the video bar. Per the HP specification the Studio V72 HDMI outputs are for provisioning support only and the HDMI input is not supported.

Connectivity and power

The figures match the HP technical specification for order code AV1E3AA.

Poly Studio V72 connectivity and power
Computer connection	1× USB-C

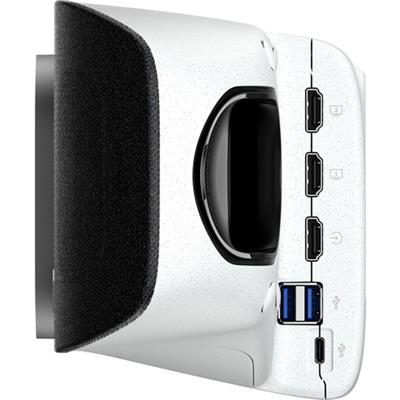

HDMI	2× HDMI 2.0 output, per the HP specification for provisioning support only; 1× HDMI 1.4 input, not supported
Line in and line out	fitted, per the HP specification not supported
USB-A	2× USB-A, disabled by default, can be enabled in the Poly Lens app

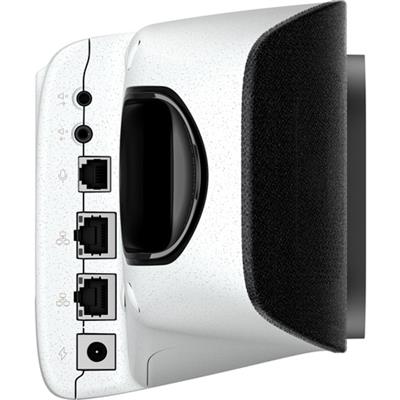

Network	1× LAN RJ-45 and 1× LLN RJ-45
Other connectors	1× RJ-11
Power	external AC adapter. The adapter is included.
Wi-Fi	Wi-Fi 802.11ax MIMO
Management	Poly Lens

Video and audio

Poly Studio V72 video and audio
Cameras	2× 20 MP
Field of view	140° and 78° diagonal
Zoom	7.3× digital zoom
Frame rate	30 frames per second
Smart camera	Poly DirectorAI: people framing, group framing, speaker tracking
Lens cover	integrated
Microphones	2× digital MEMS and 2× second-order directional, sensitivity -26 dB, pickup up to 7.62 m
Speakers	mid-bass drivers with 83 dB sensitivity, tweeter with 89 dB sensitivity
Dimensions and weight	840.18 × 135.4 × 117.93 mm, 3.31 kg
Colour	white

What is in the box

Included

Poly Studio V72
Wall mount kit
AC adapter and power cable
USB-C to USB-C cable
HDMI cable
Ethernet cable, 2 m

Not included

Stand or floor stand if not wall mounted
USB extension to the user position
Display and its mount
Poly+ Partner service programme

Order together

USB cabling to the user positionper installation

In a large room the included cable is usually not enough. We will propose a suitable extension.

Alternative mountingper installation

A wall kit is included. We will recommend a stand or floor stand for the specific room.

atlantis installation and trainingservice

Room assessment, wall mounting, computer setup and a handover test.

Variants and products in the range

Poly Studio V range and its relationship to the Studio X range
Model	Positioning	Camera	Microphone pickup	Native apps
Studio V range, USB video bars
Poly Studio V12	small room	20 MP, 132° dia.	4.57 m	no
Poly Studio V52	medium meeting room	20 MP, 110° dia.	6.09 m	no
Poly Studio V72 ◂ this product	large room	2× 20 MP, 140° and 78° dia.	7.62 m	no
Studio X range, room systems with native apps
Poly Studio X32	huddle room	20 MP, 132° dia.	4.5 m	yes
Poly Studio X52	medium meeting room	20 MP, 110° dia.	6.09 m	yes
Poly Studio X72	large meeting room	2× 20 MP, 140° and 78° dia.	7.6 m	yes

What to check before ordering and installing

Type of solution: whether the customer wants a USB video bar or a room system with its own account. That is the difference between the V72 and the X72.
Display feed and room audio: the picture has to come from the laptop, the HDMI outputs are for provisioning only, and line in and line out are not supported
Room: depth against the 7.62 m pickup range, position of the most distant participant
USB cable and applications: distance from the laptop to the video bar, cable length and routing, setting the default camera, microphone and speaker on users' computers
Mounting and colour: wall load capacity for a device 840 mm long weighing 3.3 kg, height below the display, white finish against the black Studio X range
Operation: registration in Poly Lens, firmware update before handover, enabling the USB-A ports if needed, training and a handover test

The atlantis team can help with every point. From assessing the room through pre-configuration to on-site installation and training.

Management and services

Poly Lens: inventory, monitoring, diagnostics, firmware updates and device settings including enabling the USB-A ports
Poly+ Partner: local support in Czech or English from an experienced certified team, by phone, chat, web and video call, expedited device replacement with the manufacturer shipping the replacement part on the next business day and paying the freight, all under the programme terms and for its whole term, so care can continue after the manufacturer warranty ends
atlantis installation and configuration: delivery to site, mounting, individual configuration to the customer's needs and the specific room, setting up connected computers, firmware updates, operator training and other tailored services

Warranty

Standard one-year HP Poly limited warranty. Extended support with expedited device replacement is provided by the Poly+ Partner programme.

Frequently asked questions

Why does the Studio V72 have two cameras?

One camera with a wide 140° diagonal field of view captures the overall view of the room, the other with a narrower 78° diagonal field of view brings more distant participants closer. The Poly DirectorAI smart camera switches between them as the situation requires.

What is the difference between Poly Studio V72 and X72?

Studio V72 is a USB video bar, the meeting is always run by the connected computer. Studio X72 is a room system with native Teams, Zoom and Google Meet applications and its own room account. Studio V72 also ships in white.

Can I drive a display or room audio equipment through the Studio V72?

No. Per the HP specification the HDMI outputs are for provisioning support only, the HDMI input is not supported and line in and line out are not supported. Drive the display from the laptop.

Are a power supply and a mounting kit included?

Yes. The box contains an AC adapter with a power cable and a wall mount kit, plus a USB-C cable, an HDMI cable and a 2 m Ethernet cable.
