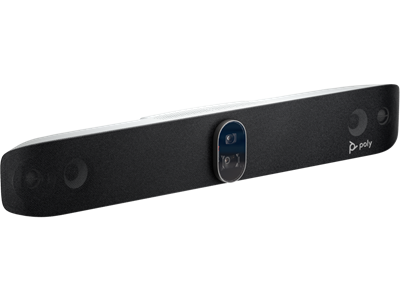

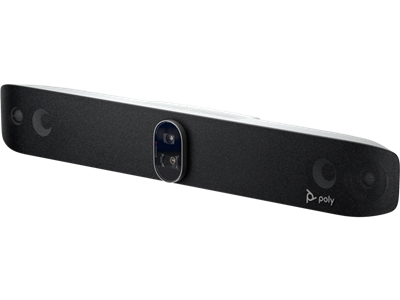

Poly Studio X72 — all-in-one video bar with dual cameras for large meeting rooms, with native Microsoft Teams, Zoom and Google Meet and no separate PC required.

Room up to 8.5 × 4.6 m

2× 20 MP camera · 140° and 78°

Microphone pickup up to 7.6 m

Teams · Zoom · Google Meet

Input for an optional microphone

Poly Studio X72 ordering variant in our range
Order code	Contents	Note
A4LZ8AA	video bar, wall mount kit, 2× HDMI cable, AC power adapter and power cable (this product)	the touch controller is ordered separately

Key features

Two 20 MP cameras with a 140° diagonal (wide) and 78° (narrow) field of view
Poly DirectorAI smart camera: people framing, group framing and speaker framing
Four microphones, two MEMS and two second-order, with pickup up to 7.6 m
Speaker array combining mid speakers and tweeters
Native Microsoft Teams, Zoom and Google Meet apps on the device
Input for an optional external microphone, plus line in and line out

Description

A large meeting room without a cabinet full of hardware

Poly Studio X72 is intended for large meeting rooms, that is spaces up to roughly 8.5 × 4.6 metres. Cameras, microphones and speakers sit in one unit and meetings run directly on the device, with no computer in the room. Installation means connecting the displays, the network and power, and configuring the platform, the room account and the controls. For the customer this means that even a large room is served by one device from one supplier.

Two cameras for two different views

Studio X72 has two 20-megapixel cameras, one with a wide 140° diagonal field of view and one with a narrower 78° view. The wide camera covers the whole room while the narrow one brings the active speaker closer without losing detail. Poly DirectorAI provides automatic framing of individuals (people framing) and of the whole group (group framing) as well as active speaker tracking (speaker framing). Digital zoom is 7.3x and the lens cover is integrated into the body.

Audio for the whole room

Four microphones, two MEMS and two second-order, pick up voices at a range of up to 7.6 metres. The speaker array combines mid speakers with a sensitivity of 83 dB and tweeters with a sensitivity of 89 dB, so the audio covers even a deep room. For unusually irregular rooms there is a line input for an optional external microphone.

Teams, Zoom or Google Meet, as the customer chooses

The device runs native apps for Microsoft Teams, Zoom and Google Meet. The platform decision is therefore not a hardware decision: the platform is chosen during configuration and can later be changed in settings. In Poly App mode, standards-based SIP and H.323 up to 6 Mbps are also available. Content can be connected by cable over the HDMI input, and over USB the video bar serves as camera and audio for a connected laptop.

Strengths and limits

Strengths

Two cameras with different fields of view, a large room without compromising detail
Microphone pickup of 7.6 m, the longest in the current generation of the range
Input for an optional external microphone in irregular rooms
Wall mount kit, both HDMI cables and the power supply are in the box

Limits worth telling the customer

The video bar is powered by an AC adapter, not over PoE. A socket is needed by the display.
The touch controller is not in the box; for native Teams Rooms or Zoom Rooms mode it is ordered separately.
A weight of 3.3 kg and a width of over 84 cm place demands on the load capacity and width of the mounting position under the display.
The standard manufacturer warranty on this model is one year.

⚑ atlantis note

Controls

For native Teams Rooms or Zoom Rooms mode allow for the Poly TC10 touch controller (875K5AA black, 875J5AA#AC3 white). It is not in the video bar box and the room will not work well without it.

Mounting

The wall mount kit is included. VESA mounting (875L2AA) and placement on a table or cabinet (875L3AA) use separate kits. With a width of over 84 cm and a weight of 3.3 kg, check the load capacity of the structure.

Generation

Studio X72 is the current generation and replaces Studio X70. We recommend X72 for new projects and X70 only where the customer is extending an existing installation.

Large rooms

For rooms beyond the recommended size or with an irregular floor plan it pays to review the design in advance. The answer is usually the optional external microphone on the line input, not a bigger video bar.

Room fit

Recommended room parameters
Recommended room size	up to 8.5 × 4.6 m (28 × 15 ft)
Microphone pickup range	7.6 m
Number of displays	2, HDMI 2.0 outputs (4K at 30 Hz)
Typical deployment	large meeting room, conference room, training room, boardroom

Good fit

A large meeting room up to 8.5 × 4.6 m, a long meeting table, a requirement for detail on distant participants and for a clean installation with no PC and no rack in the room.

Check the design

A room beyond the recommended size, an irregular floor plan, hard acoustics, unusual display positions, load capacity of the structure under the display. We are happy to review it.

Consider another model

For a standard meeting room Studio X52 with a single camera works out cheaper, for a huddle room Studio X32. See the range table below.

Modes of use and platforms

Recommended for a permanent room

Native room system

Meetings run directly on the device, with no computer in the room. The platform is chosen during configuration and can later be changed in settings.

Microsoft Teams

Zoom

Google Meet

For guests and other platforms

USB mode (BYOD)

The video bar appears as a USB camera and audio device for a connected laptop, so a guest uses the application they have on their own device.

Connected over USB

Connecting to infrastructure

Standards-based protocols

Calls over SIP and H.323 up to 6 Mbps in Poly App mode, for connecting to video conferencing infrastructure. We are happy to review the design.

SIP

H.323 up to 6 Mbps

The device always runs in one of these modes, they do not run side by side. Changing the native platform is a configuration step in the device settings, not switching during a meeting.

Connectivity, network and security

The parameters the customer's IT and security teams ask about most often when approving a deployment. The figures match the HP technical specification for order code A4LZ8AA.

Poly Studio X72 connectivity, network and security

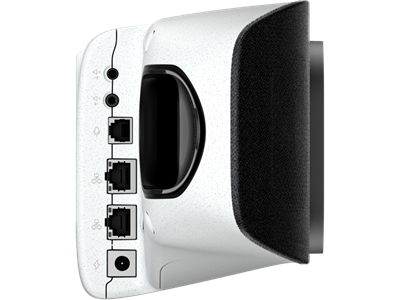

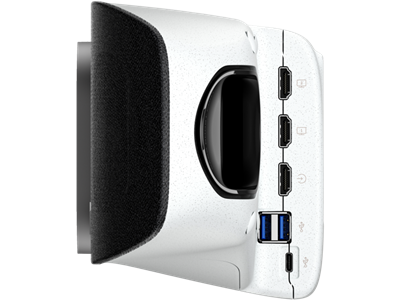

Interfaces	1× HDMI input 1.4 (video and audio, 4K at 30 Hz), 2× HDMI output 2.0 (video, 4K at 30 Hz), 1× USB-C 5 Gbps, 2× USB-A 5 Gbps, line in, line out, input for an optional microphone
Network	1× 10/100/1G Ethernet, Auto-MDIX, IPv4 and IPv6, web proxy basic, digest and NTLM, SCEP, LPR and dynamic bandwidth allocation
Wi-Fi and Bluetooth	Wi-Fi 802.11a/b/g/n/ac/ax (MIMO), Bluetooth 5.0
Media encryption	AES-128 and AES-256 for H.323 and SIP, H.235.6 support
Management security	authenticated access to admin menus, web interface and APIs, password policy, security profiles, secure defaults, remote logging with TLS support, Active Directory external authentication
Power	external AC adapter with auto sensing
Operating environment	0 to 40 °C, humidity 15 to 80 %
Central management	Poly Lens (cloud): inventory, monitoring, diagnostics, bulk updates

Poly Studio X72 video and audio
Camera resolution	2× 20 MP
Field of view	140° diagonal (wide camera), 78° diagonal (narrow camera)
Zoom	7.3x digital
Frame rate	5 to 30 fps, up to 4K resolution at 15 fps in call
Smart camera	Poly DirectorAI: people framing, group framing, speaker framing
Microphones	2× MEMS and 2× second-order, pickup up to 7.6 m
Speakers	sensitivity 83 dB mid, 89 dB tweeters
Lens cover	integrated
Dimensions and weight	840.2 × 135.4 × 117.9 mm, 3.3 kg

What's in the box

In the box

Poly Studio X72
Wall mount kit
2× HDMI cable
AC power adapter
Power cable

Not included

Poly TC10 touch controller (875K5AA, 875J5AA#AC3)
VESA mounting kit 875L2AA
Table stand 875L3AA
Table microphone 875M6AA
Poly+ Partner service programme

Order with it

Poly TC10 touch controller875K5AA / 875J5AA#AC3

For native Teams Rooms or Zoom Rooms mode. Not in the box.

VESA mounting875L2AA

For a VESA pattern up to 800 × 400 mm. Assess the load capacity of the structure separately, against the weight of the device. The box contains a wall mount kit.

Table stand875L3AA

For placement on a table or a cabinet under the display.

Table microphone875M6AA

For irregular rooms beyond the recommended size, connected to the line input.

HDMI cables of the right lengthper installation

Two cables are included, but in larger rooms they tend to be short.

Variants and products in the range

Poly Studio X range comparison
Model	Recommended room	Camera	Microphone pickup	Power
Current generation
Poly Studio X32	up to 4.6 × 3.0 m	20 MP, 132° dia.	4.5 m	PoE++
Poly Studio X52	up to 6.1 × 4.6 m	20 MP, 110° dia.	6.09 m	AC adapter
Poly Studio X72 ◂ this product	up to 8.5 × 4.6 m	2× 20 MP, 140° and 78° dia.	7.6 m	AC adapter
Previous generation (available as an alternative)
Poly Studio X70	up to 9.1 × 6.1 m	2× 20 MP, 140° and 78° dia.	7.6 m	AC adapter

What to check before ordering and installing

Room: dimensions and depth against the 7.6 m microphone pickup, table shape, position of the most distant participant
Mounting and power: load capacity of the structure under the display, 84 cm width and 3.3 kg weight, wall kit from the box or kit 875L2AA, and a socket by the display, the video bar is not powered over PoE
Acoustics and light: reflective surfaces, air-conditioning noise, backlight from windows and the option to shade, and table microphone 875M6AA in irregular rooms
Platform and controls: Teams Rooms, Zoom Rooms or Google Meet, room account and licences, the Poly TC10 touch controller, its PoE and its position on the table
Displays and network: one or two displays, diagonal and viewing distance, HDMI cables of the right length, VLAN, firewall and proxy, DNS and NTP, certificates and the customer's rules for AV traffic
Operation: current firmware, registration in Poly Lens, the Poly+ Partner programme, training and an acceptance test

The atlantis team will help with every point. From validating the room design through pre-configuration to installation, integration and on-site training. For large rooms we recommend a consultation before ordering.

Licensing and services

Poly Lens cloud management: remote inventory, monitoring, diagnostics and bulk software updates
Poly+ Partner: local support in Czech or English from an experienced certified team, by phone, chat, web and video call, expedited device replacement with the manufacturer shipping the replacement part on the next business day and paying the freight, all under the programme terms and for its whole term, so care can continue after the manufacturer warranty ends
atlantis installation and configuration: delivery to site, mounting, individual configuration for the customer and the specific room, connection to the communication platform, network integration, interfacing with third-party components, user training, handover documentation and further services on request

Warranty

Standard one-year limited HP Poly warranty. Extended support with expedited device replacement is provided by the Poly+ Partner programme.

Frequently asked questions

What is the difference between Studio X72 and X70?

Poly Studio X72 is the current generation and replaces Studio X70. Both have dual 20 MP cameras with 140° and 78° fields of view; X72 adds Wi-Fi to the ax standard, HDMI 2.0 outputs and an input for an optional microphone. We recommend X72 for new projects.

Do I need a separate PC with Studio X72?

No, in native mode Poly Studio X72 needs no separate PC. The Teams, Zoom and Google Meet apps run on the device itself. A laptop is only needed in USB mode.

Is a mount included?

The Poly Studio X72 box contains a wall mount kit and two HDMI cables. The VESA kit (875L2AA) and the table stand (875L3AA) are not included.

Can the video bar be powered over PoE?

No, Poly Studio X72 is powered by the supplied AC adapter. A socket is therefore needed by the display.
